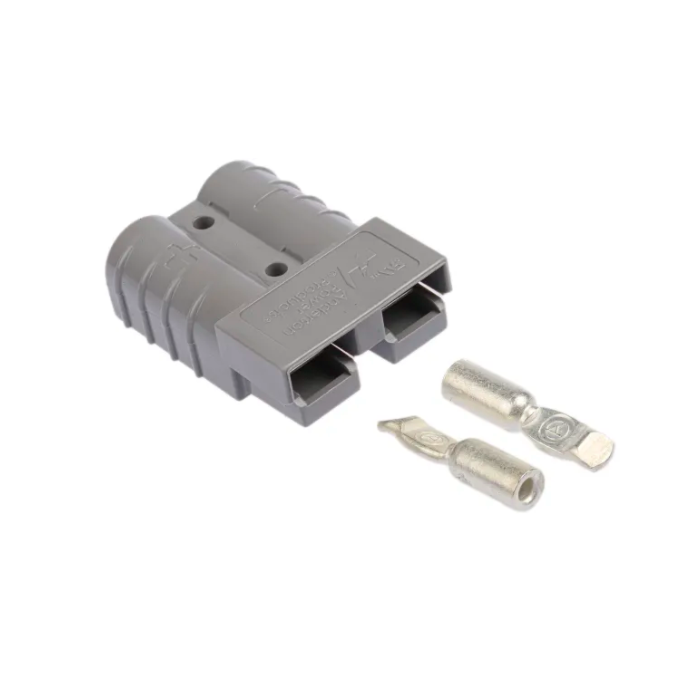

Anderson Kontakt Grå SB50, 992G 50A inkl 2 stk 6AWG terminal
calcActive())">
Anderson Kontakt Grå SB50, 992G 50A inkl 2 stk 6AWG terminal
The smallest SB® housings work with wire contacts up to 6 AWG [10 mm²] as well as PCB, and busbar contacts.
Genderless design mates with itself. Mechanical keys are color coded.
SB®50 connectors feature a one piece plastic housing using stainless steel springs to hold low resistance contacts in place.
Wires sizes from #16 (1.5 mm²) to #6 (13.3 mm²) are held in the smallest of the SB® series housings.
Low Resistance Silver or Tin Plated Copper Contacts Allows UL rated currents up to 120 amps
UL Rated for Hot Plugging up to 50 Amps Great for battery or other applications where the ability to interrupt circuits is required
Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs
Lagersaldo : 18 stk
På Lager - Kan være hos deg om noen dager
SKU
D-12210
ID :
139141
kr 124,00
Eks. MVA:kr 99,20
Eks. MVA:
Mer informasjon
Weight
0.200000
Produktkategori
Diverse
Tollkode
3926909790
Opprinnelsesland
Kina
Sertifiseringer
CE, EN 60335, RoHS
